KCT2494G93T11AB
WLAN 2.4G / 5G Diplexer Product
Introduction

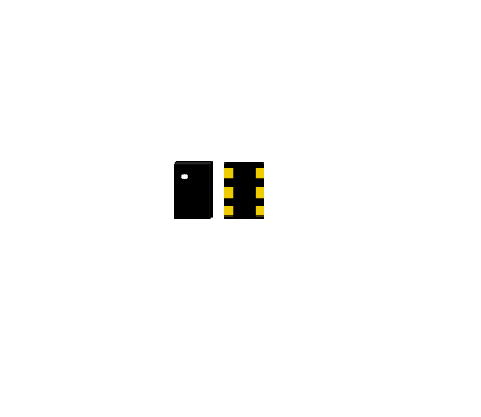

KCT2494G93T11AB is a module that splits 2.4GHz and 5GHz signals from a single WLAN antenna. The part is housed in a 1.6 x 0.8 mm laminate-based over-molded module. This device provides excellent insertion loss for both the 2.4GHz and 5GHz signals while effectively protecting each band from the other. This diplexer is designed to match natively to 50 Ohms. No external matching is required.
Specifications
| Type | Infrastructure |
| Frequency (MHz) | 2,400 to 2,496, 4,900 to 5,950 |
| Bandwidth (MHz) | 40, 80, 160 |
| Insertion Loss (dB) | 0.50, 0.75 |
| Attenuation (dB) | 28, 29 |
| Package Type | Laminate |
| Package (mm) | 1.6*0.8 |
